SCHECHTL MANUAL SEGMENT BENDING MACHINE TBS 100/125

Description

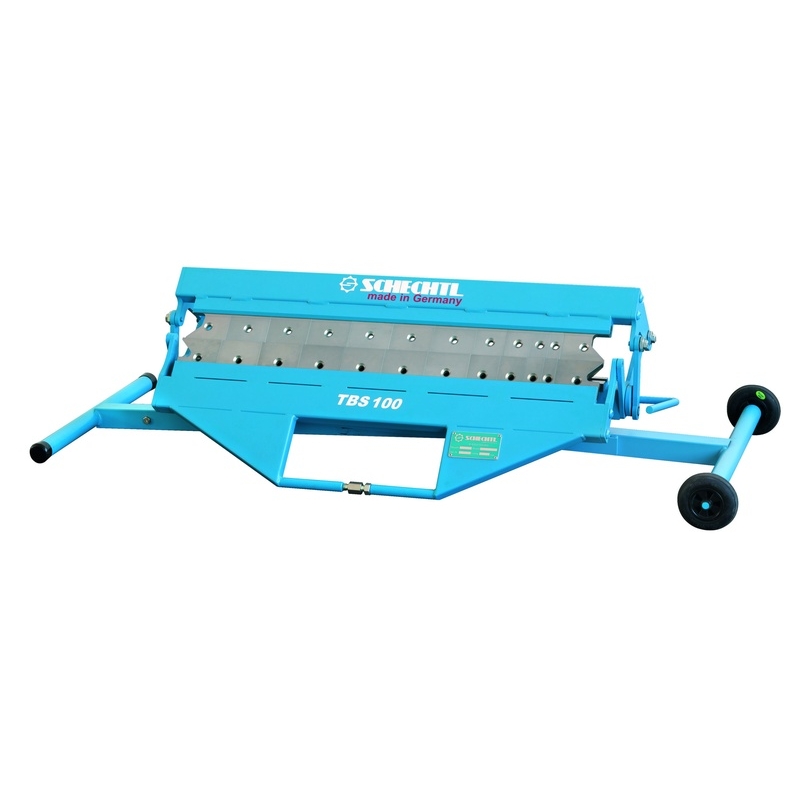

SCHECHTL MANUAL SEGMENT BENDING MACHINE TBS 100 / 125

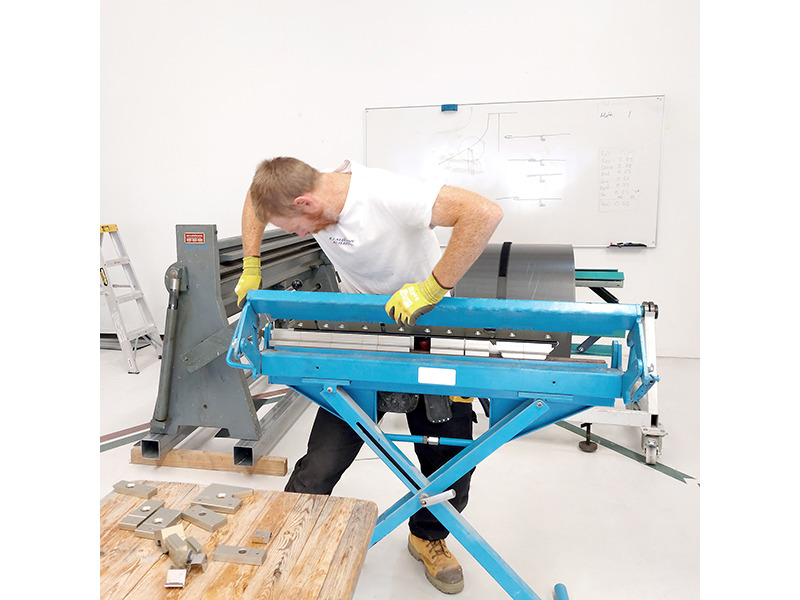

The Schechtl TBS 100 / 125 is a lightweight, mobile segment bending machine designed for flexible use on construction sites or in workshops. Compact and easy to transport, it can be set up in tight spaces, on scaffolding, or between floors. Tool-free segment changes, optional X-frame accessories, and efficient transport options make it a versatile solution for sheet metal bending.

Uses:

• Mobile finger-bender for construction sites
• Easy handling between floors, on scaffolding, and in narrow spaces
• Mountable on a workbench or construction vehicle (without X-frame)
• Suitable for bending steel, aluminium, stainless steel, copper, and zinc

Product Details:

• Smallest and most flexible manual segment bending machine in the Schechtl range
• Tool-free segment changes for efficient operation
• Compact dimensions, transportable by one person

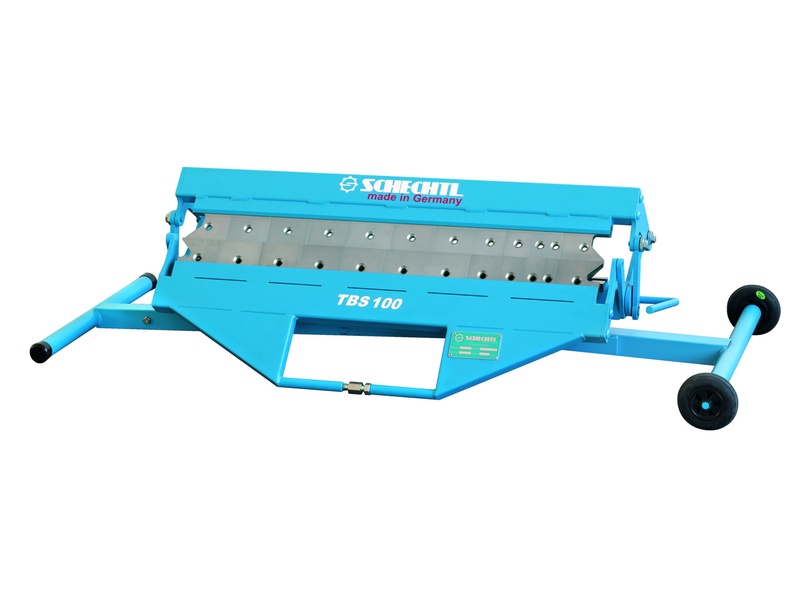

• Foldable design, can be pulled like a trolley on wheels

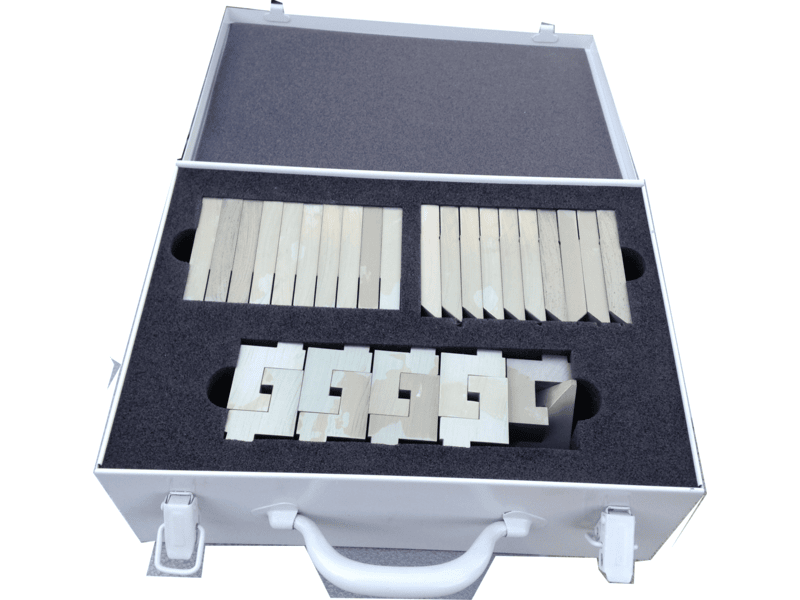

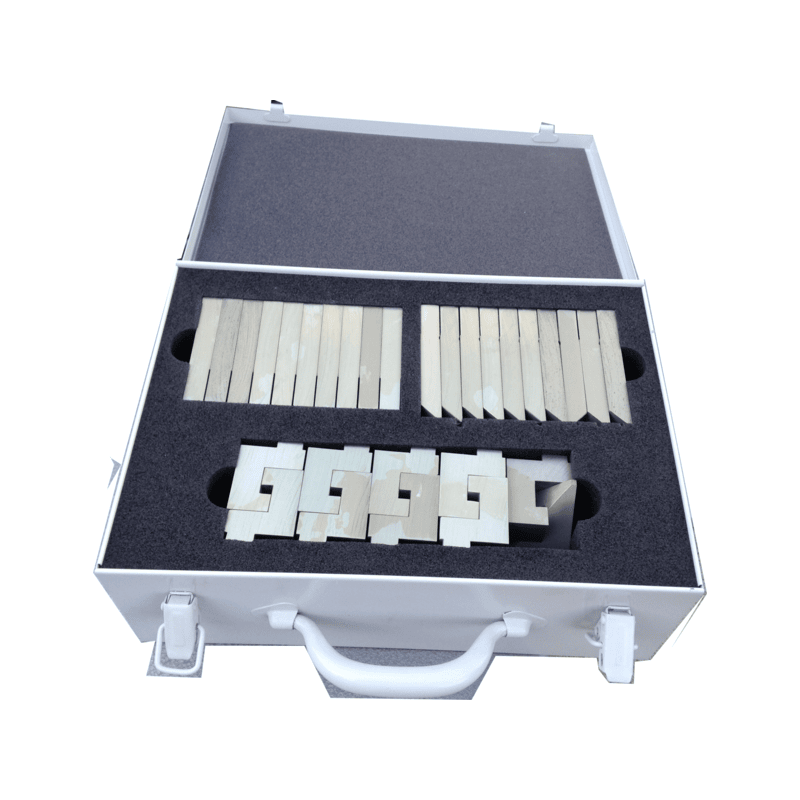

• Segments can be stored separately to reduce transport box weight

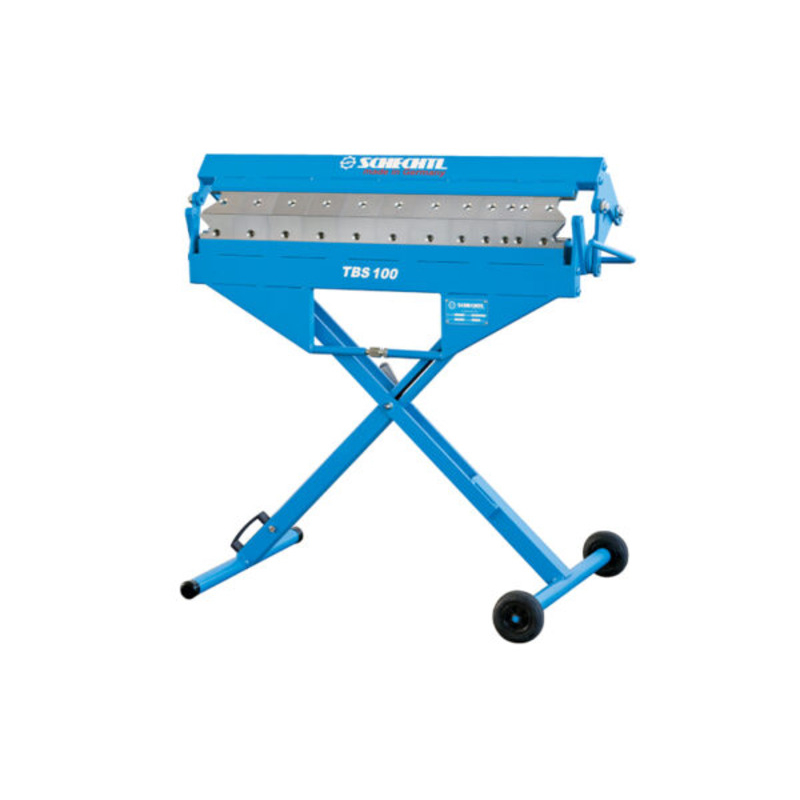

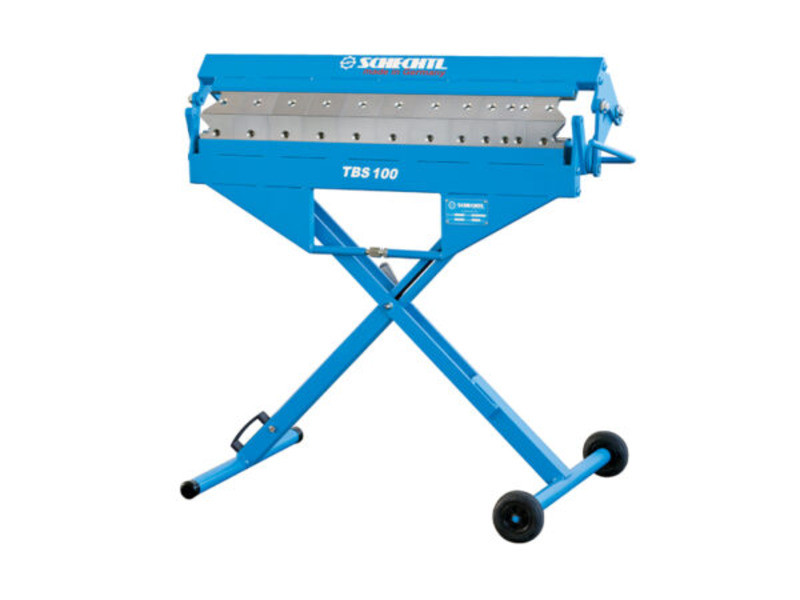

• Optional X-frame for stability during use and transport
• Available in two working lengths: 1000 mm and 1250 mm
• Made in Germany

Technical Data:

• Segments with quick clamping system for upper, lower, and bending beams along full working length
• Passage height of upper beam segments: 40 mm
• Passage height of lower and bending beam segments: 40 mm
• Upper beam opening height: 45 mm
• Adjustable upper beam pressure
• Bending beam lowering device
• X-frame weight: 17 kg
• Capacity:
  • Steel (400 N/mm²): 0.63 mm
  • Aluminium (250 N/mm²): 1.00 mm
  • Stainless steel (600 N/mm²): 0.50 mm
  • Copper (300 N/mm²): 0.80 mm
  • Zinc (150 N/mm²): 1.00 mm

Models:

• TBS 100 – Working length: 1000 mm
  Segment divisions: 1 x Corner left 100 mm, 1 x Corner right 100 mm, 1 x 30/40/60/70 mm, 2 x 50 mm, 5 x 100 mm

• TBS 125 – Working length: 1250 mm
  Segment divisions: 1 x Corner left 100 mm, 1 x Corner right 100 mm, 1 x 30/40/60/70 mm, 1 x 50 mm, 8 x 100 mm

Accessories:

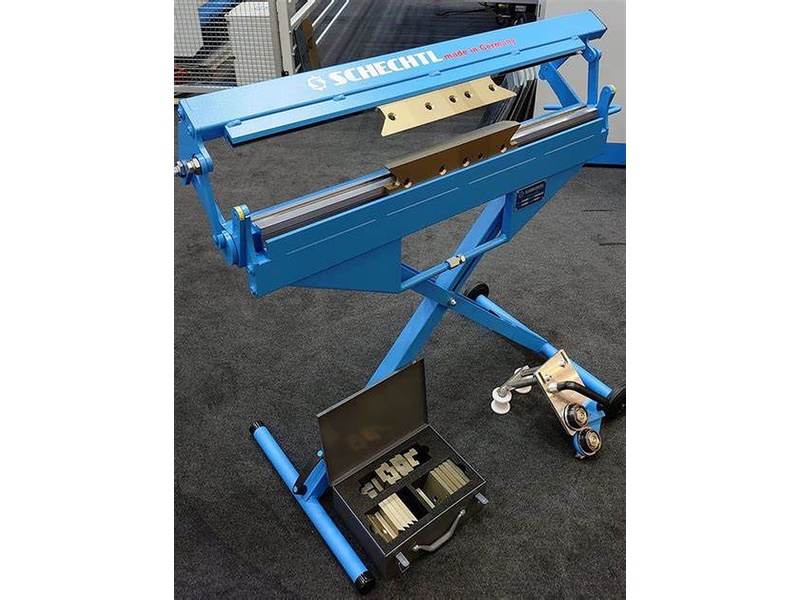

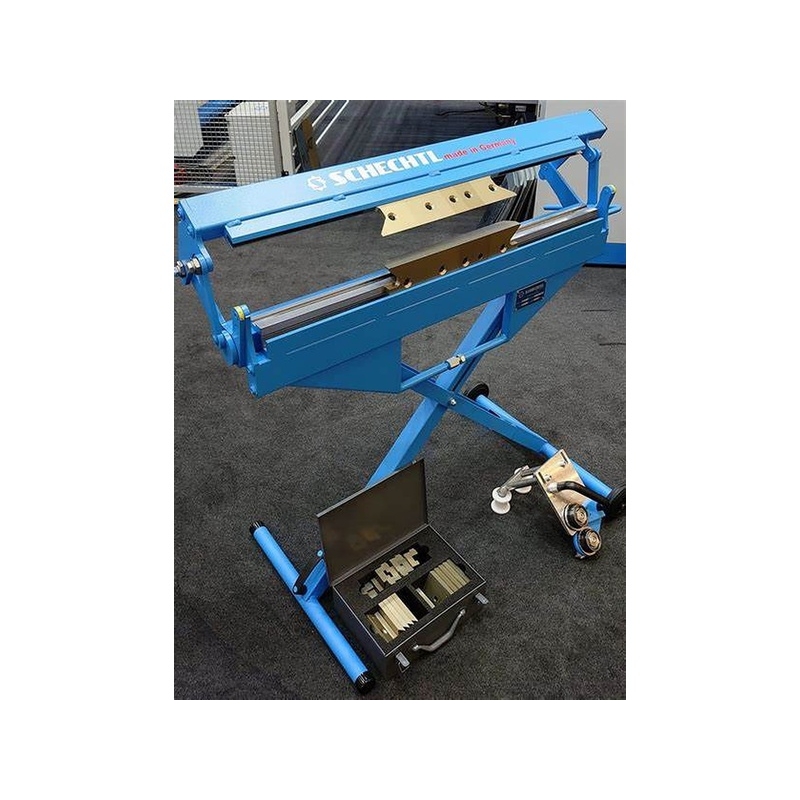

• Roller shear (cutting capacity: 0.8 mm)
