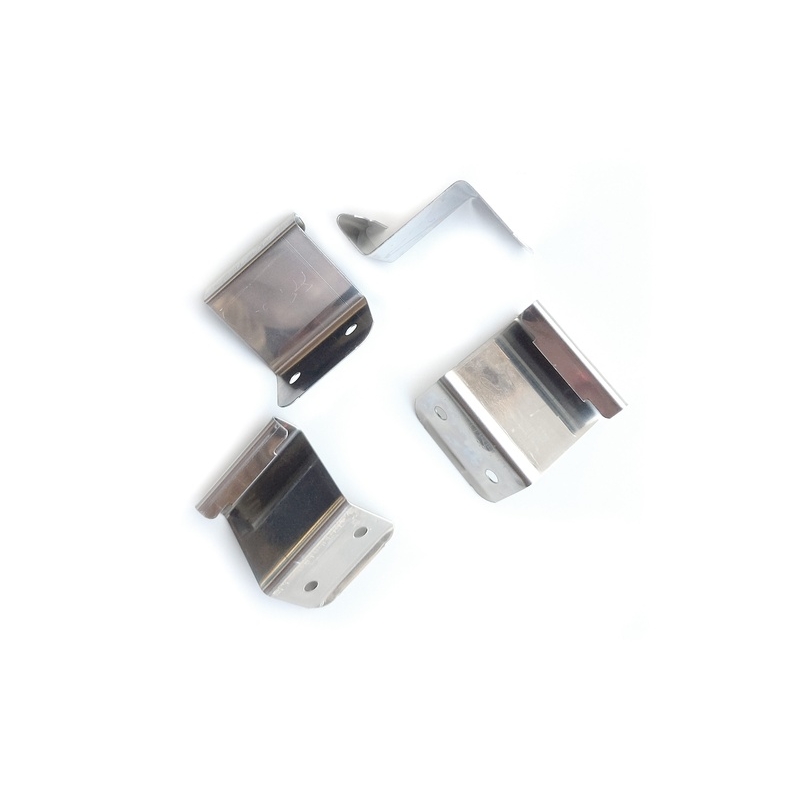

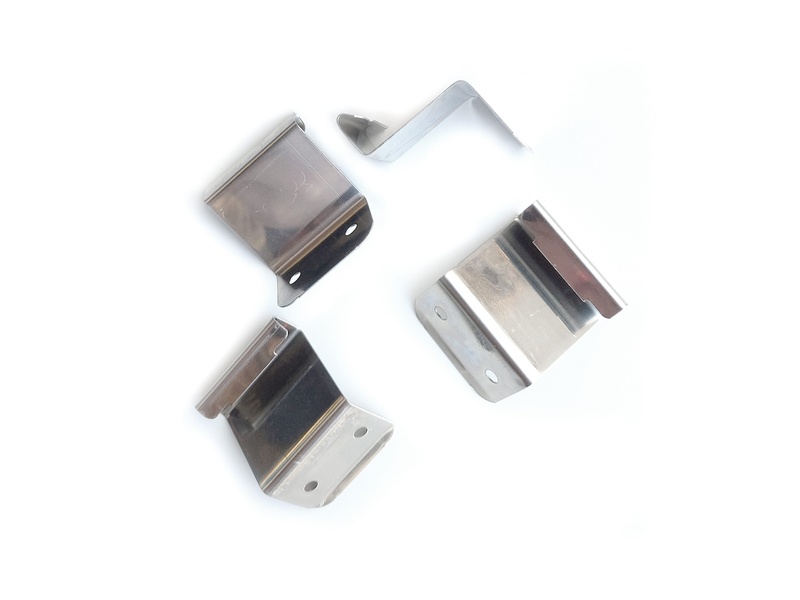

REES STANDING SEAM FIXED CLIPS

Designation with rounded edges and a fine splay at the foot end.

Fixing clip suitable for angle and double standing seam. Attaching on the pre-profiled standing seam. With rounded corners and a fine splay at the foot end. Our clips are manufactured according to the technical rules for the German plumbing trade regarding material, strength, and design. The special shaping of the upper part of our fixing clips results in a slight clamping effect in the pre-profiled seam, which contributes to the fact that the suspended attachments do not slide downwards.

• Fixed clips No. 5
• Material: Stainless Steel EN 1.4301 / AISI 304
• 30mm wide
• 500 clips/box
• Minimum order quantity: 1 box
• Fixing with nails

SEAM HEIGHT Stainless Steel Clips:

• HA-5355:         25 mm  500/box (5 mm hole)
• HA-5350-28:    28 mm  500/box
• HA-5350-30:    30 mm  500/box
• HA-5350-32:    32 mm  500/box
• HA-5355-H38: 50 mm   500/box (5 mm hole)

SEAM HEIGHT Galvanised Clips:

• HA-5155:         25 mm   500/box (5 mm hole)

TECHNICAL DATA SHEET:

• Product specification fixing clip
• Assembly comments clips


Made in Germany

ALL REES PRODUCTS MUST BE USED ACCORDING TO THE GUIDELINES OF THE AUS METAL ROOF AND WALL CLADDING CODE OF PRACTICE.
