REES SNOW RETENTION BRACKET FOR ANGLED SEAMS

• Material: Aluminium
• Weight per box: 2.5kg

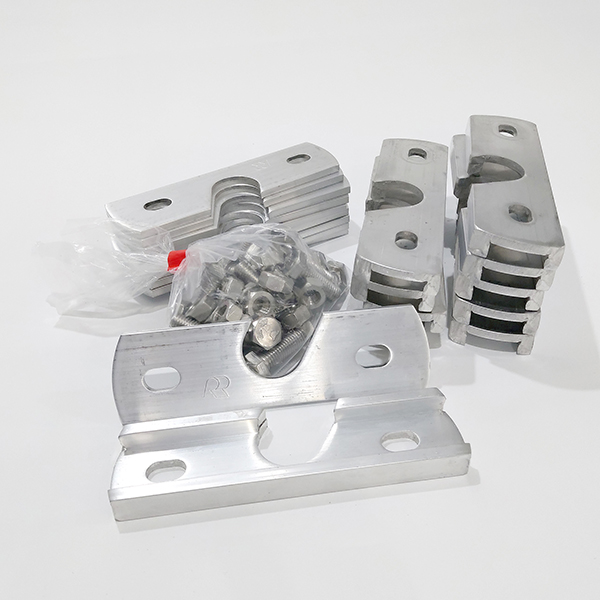

• Box: 10 brackets, 10 plates, 10 screws, 10 nuts

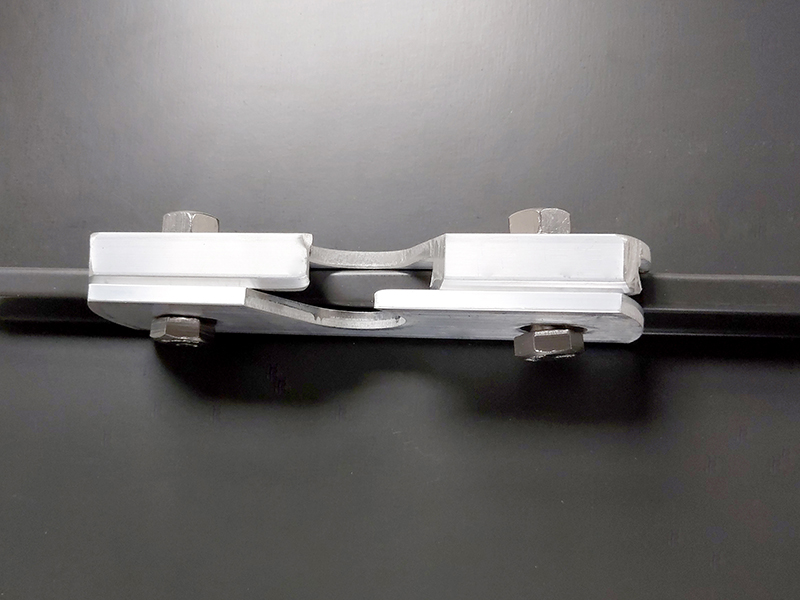

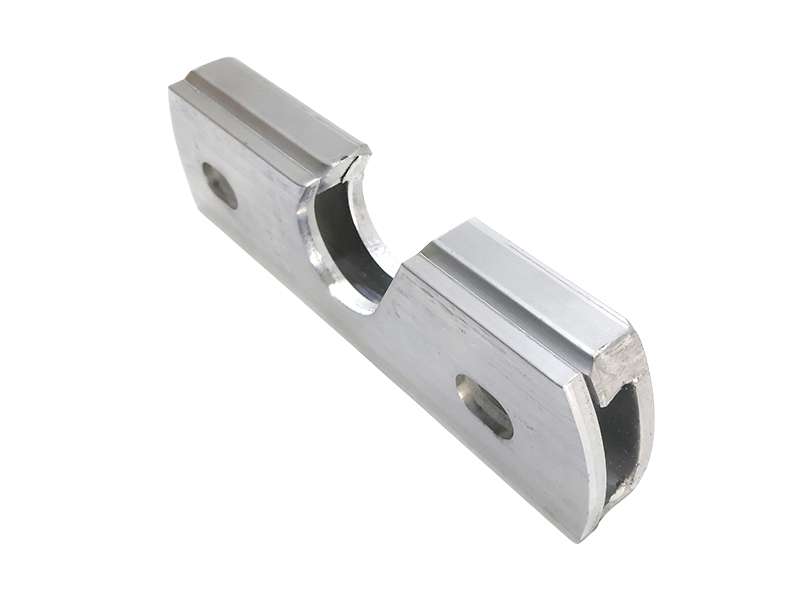

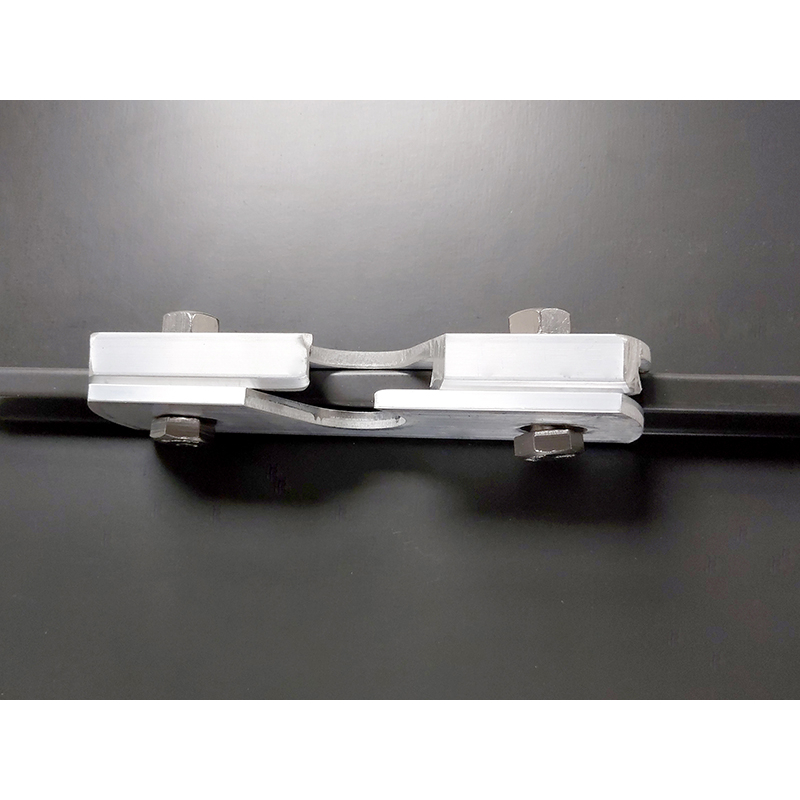

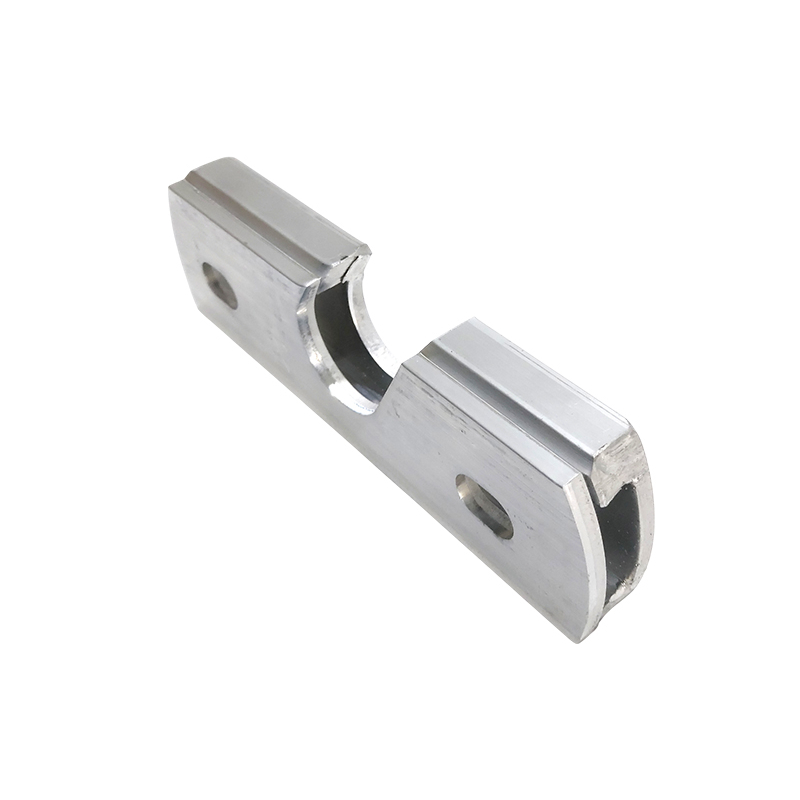

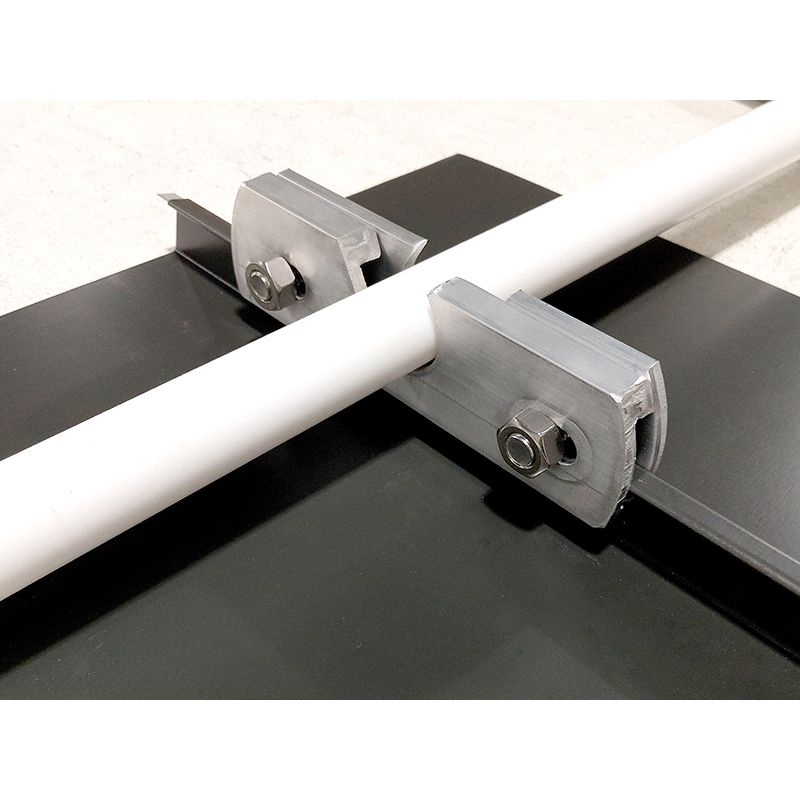

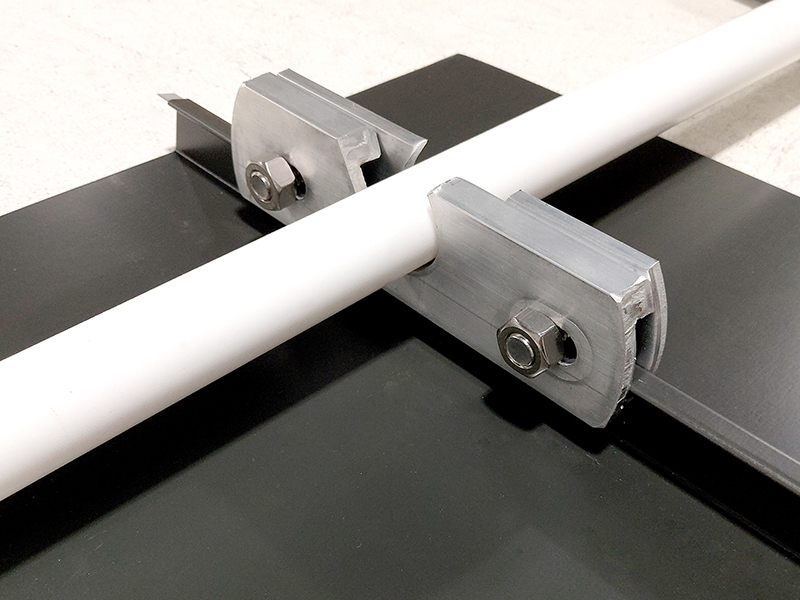

Snow retention bracket for angled standing seam roof. Suitable for tubes with max. 33 mm outer diameter. With stainless steel screws (A2) M12 x 35 and nuts (A4) M12. According to the technical rules for the German plumbing trade.

Roof covering:

• Kliptec
• Snap lock
• Standing seam
• Standing seam other

TECHNICAL DATA SHEET:

Product specification

ALL FIXINGS MUST BE USED ACCORDING TO THE GUIDELINES OF AUS METAL ROOF AND WALL CLADDING CODE OF PRACTICE.
