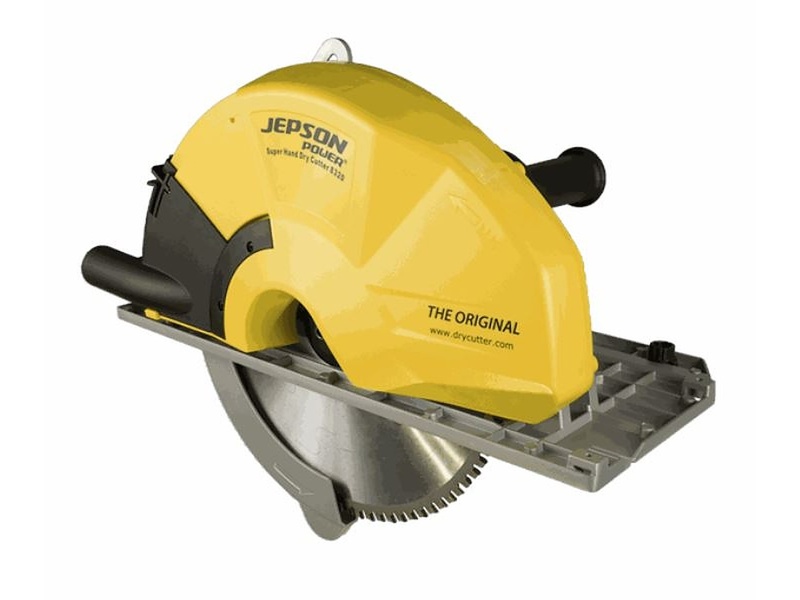

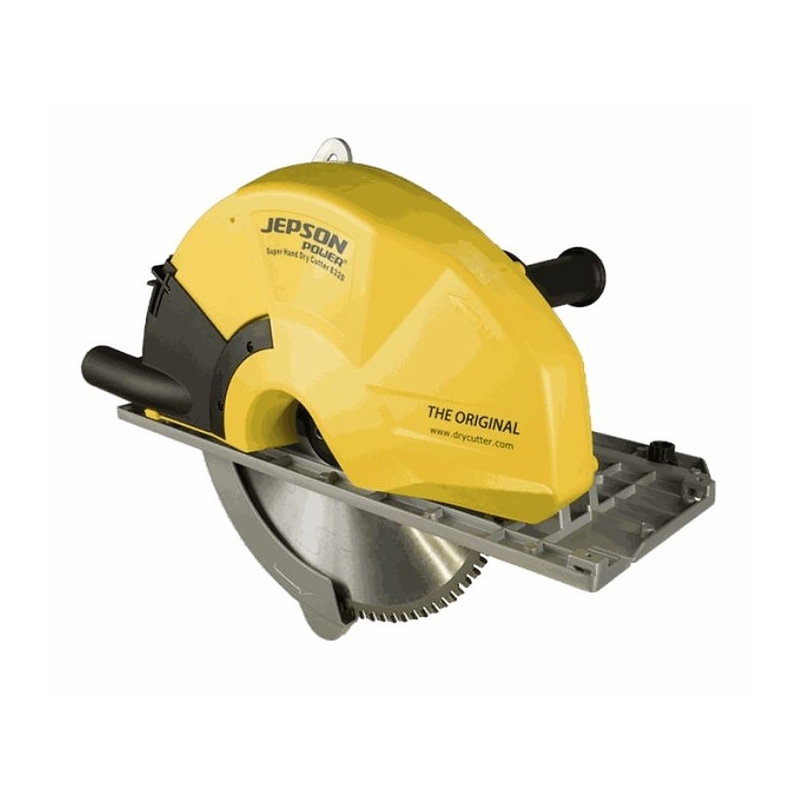

JEPSON SHDC 8320 INSULATED PANEL CUTTER



Circular Saw for cutting sandwich panels, trapezoidal sheets, trunking and cable ducting, steel pipes and nonferrous metals, composite materials and more.

Metal cutting circular saw by Jepson Power for fast and low-burr sawing of sandwich panels and trapezoidal sheets without cooling.

• Integrated chip collector for clean work
• No need of lubrication
• Maximum cutting depth up to 120 mm on the guide rail
• Closed construction of the blade guard prevents flying chips to the user
• LED overload indicator: green: ok | flashing red: warning | red: overload
• Ideal for clean and straight cutting of sandwich panels
• Ø 320 mm / 84T carbide tipped saw blade included
• Power input: 15 amps | Voltage: 115V/60Hz
• No load speed: 1.700 rpm
• Lightweight magnesium construction: 8.4 kg (without saw blade)
• Blade size: 12 5/8" / 320mm
• Cable length: 5 m
• Optional guide rail delivered with 2 C-clamps (see below)
• Optional Blow Case  (see below)

Accessories:

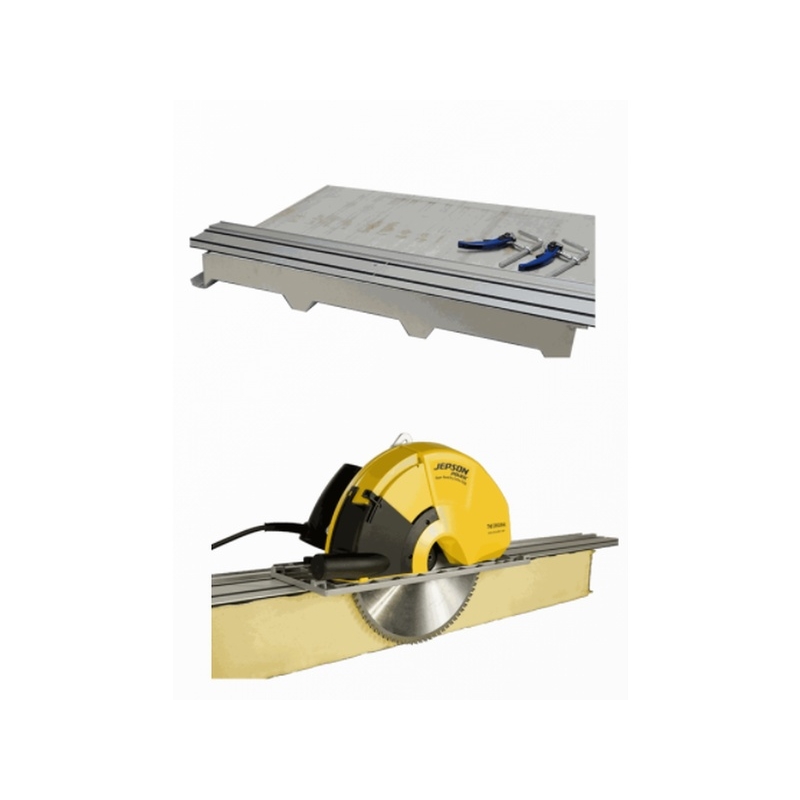

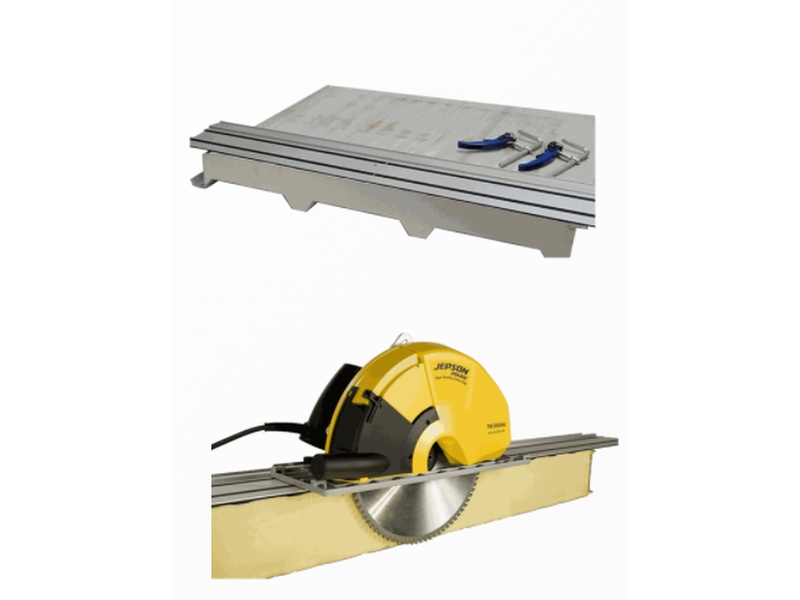

• JEPSON GUIDE RAIL 1400 MM INCL 2 C - CLAMPS: Guide rail 1,400mm with 2 C-clamps. Ideal for clean and straight cutting of sandwich panels. SKU: 608275SET

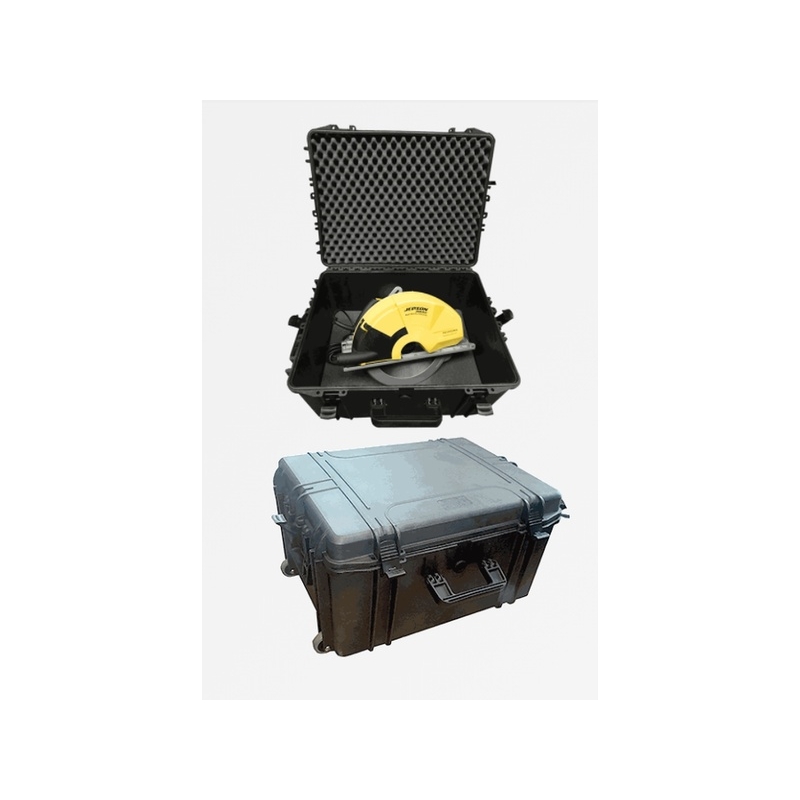

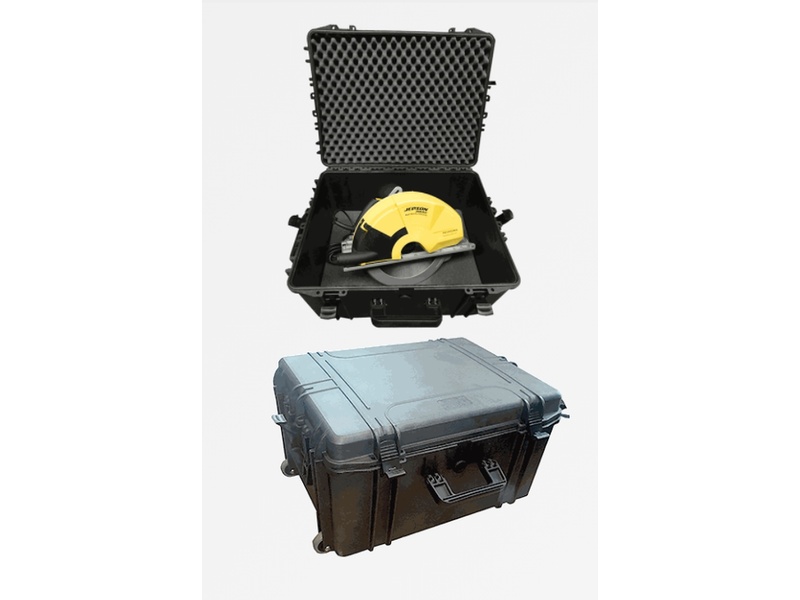

• JEPSON BLOW CASE: Professional heavy-duty, high-performance box for maximum protection during storage and transport. Easier and more convenient transport of the machine for a clean and economical workplace. Box only. SKU: 60827BOX

The use of 2.2mm saw blades can cause damage to the machine and void the warranty
