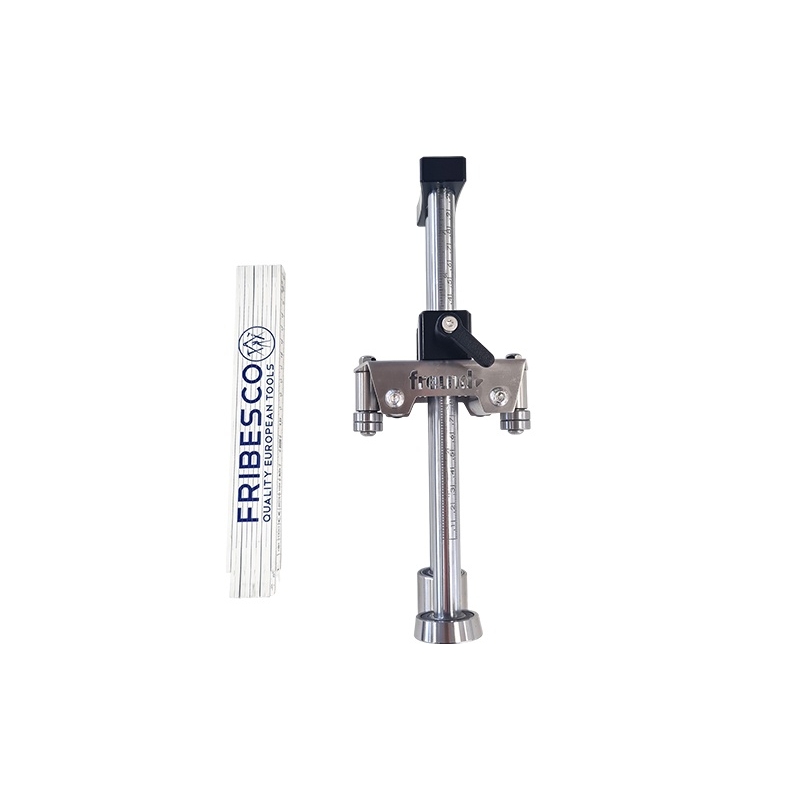

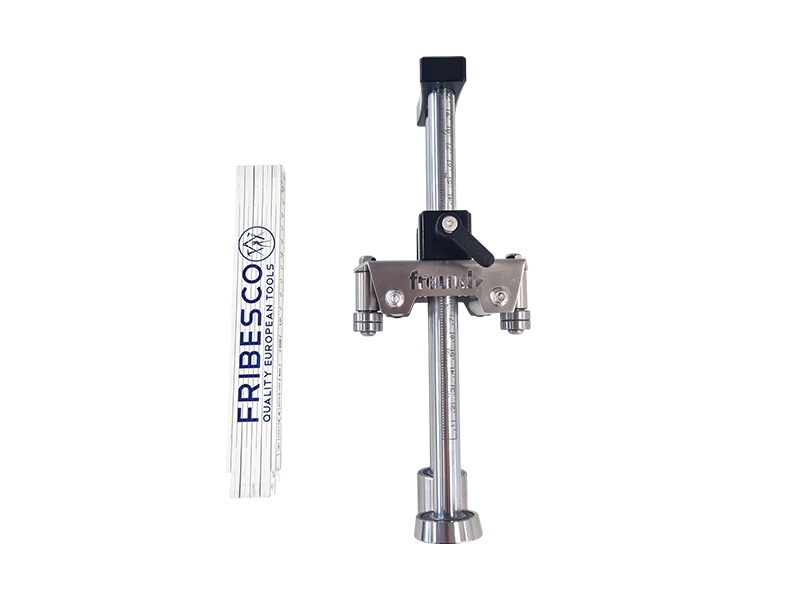

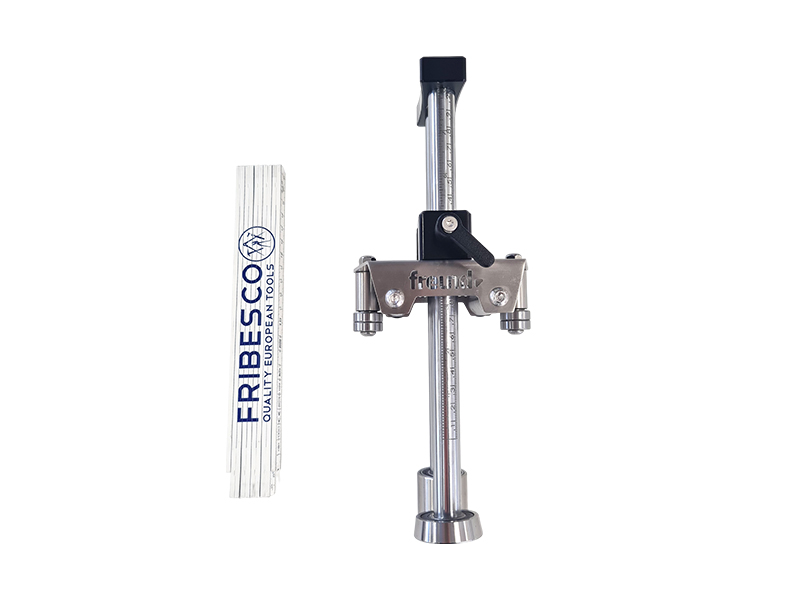

FREUND STANDARD EDGE ROLLER

Description

FREUND STANDARD EDGE ROLLER

A versatile edging tool designed to make forming edges simple and precise on the job. With its clearly marked mm scale and adjustable upstand height from 5 to 200 mm, this edge roller is easy to handle even on small radii. Clip it to your belt using the handy eyelet, and get accurate results whether you’re working with zinc, copper, or steel.

Uses:

• Rolling precise edges and upstands in sheet metal work
• Suitable for roofing, cladding, and façade detailing
• Works well on small radii and tight curves

Product Details:

• Clear, easy-to-read mm scale

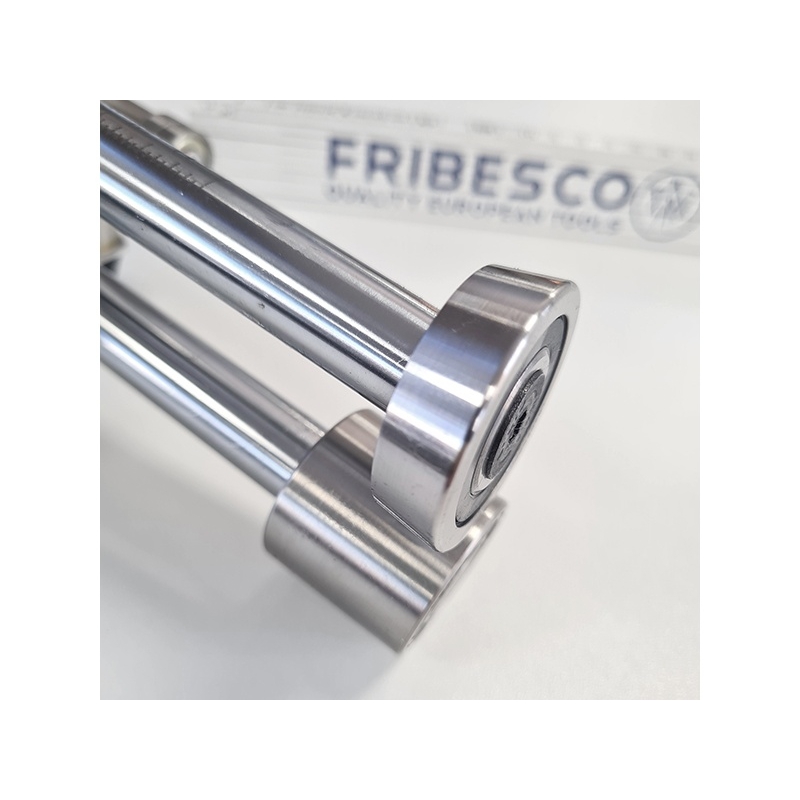

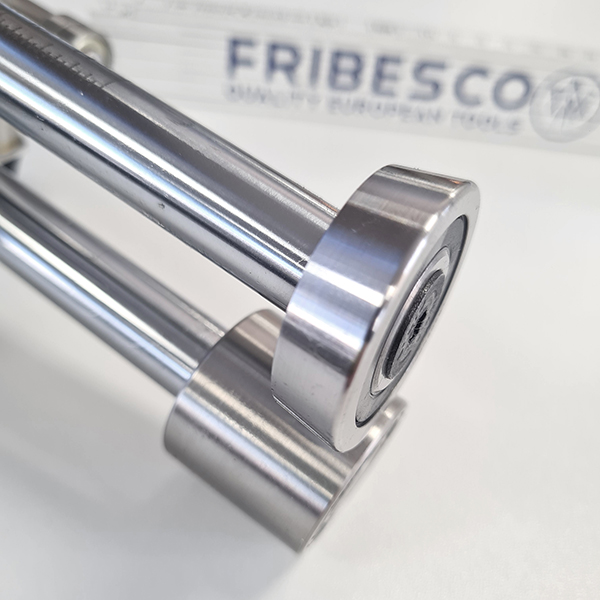

• Two leadership rollers for smooth guidance
• Adjustable upstand height: 5 to 200 mm
• Upstand angle: 0 to 90 degrees
• Eyelet for attaching to a tool belt
• Compact width for easy handling on site

Technical Data:

• Width: 112 mm
• Weight: 1.4 kg
• Maximum material thickness:
• • Zinc, Aluminium: up to 1 mm
  • Copper: up to 0.8 mm
  • Steel: up to 0.7 mm
  • Stainless steel: up to 0.5 mm
