FALZSID RVM – STRIP JOINT MACHINE WITH GEAR ADAPTER

FALZSID RVM – STRIP JOINT MACHINE WITH GEAR ADAPTER

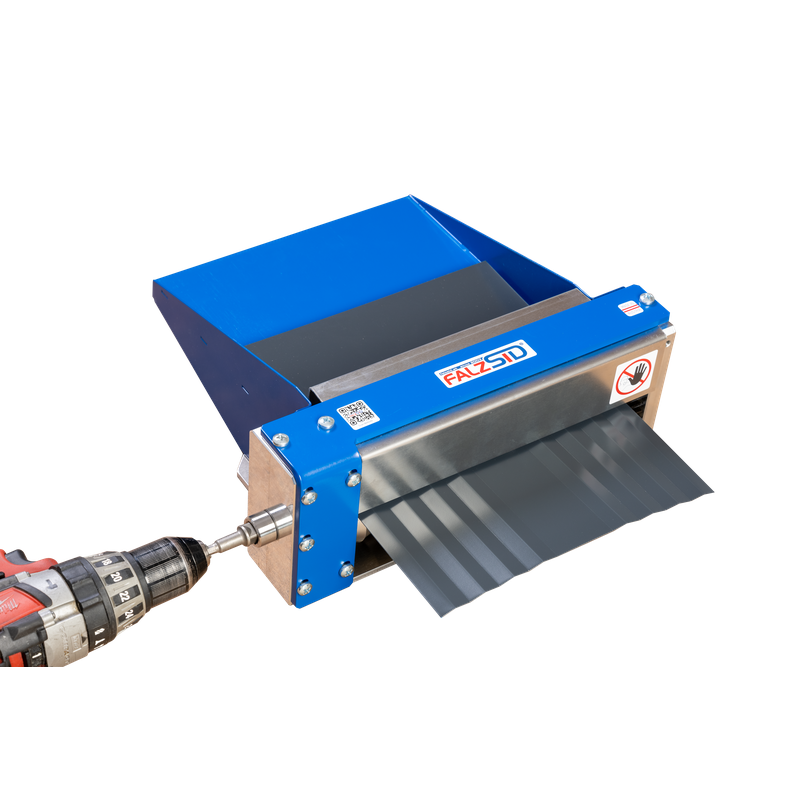

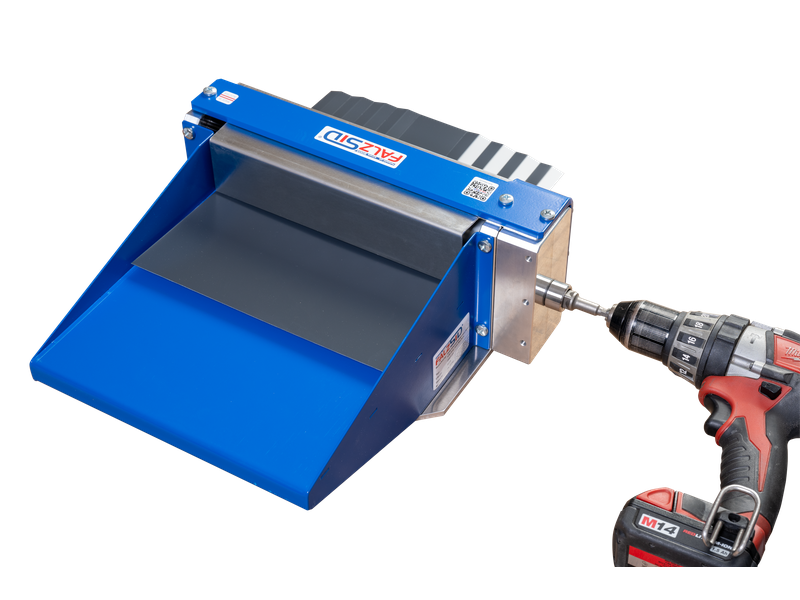

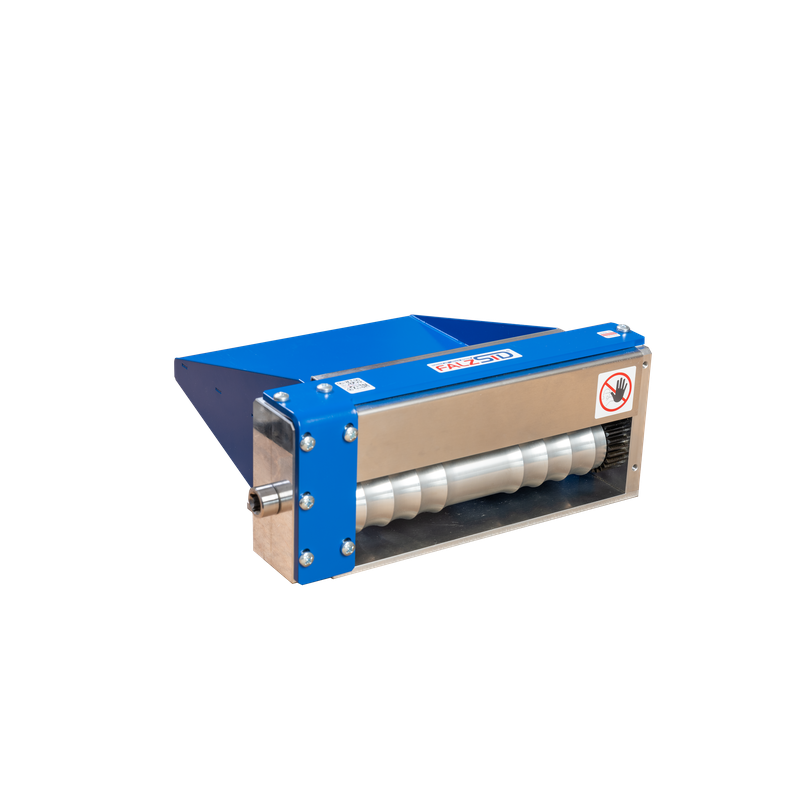

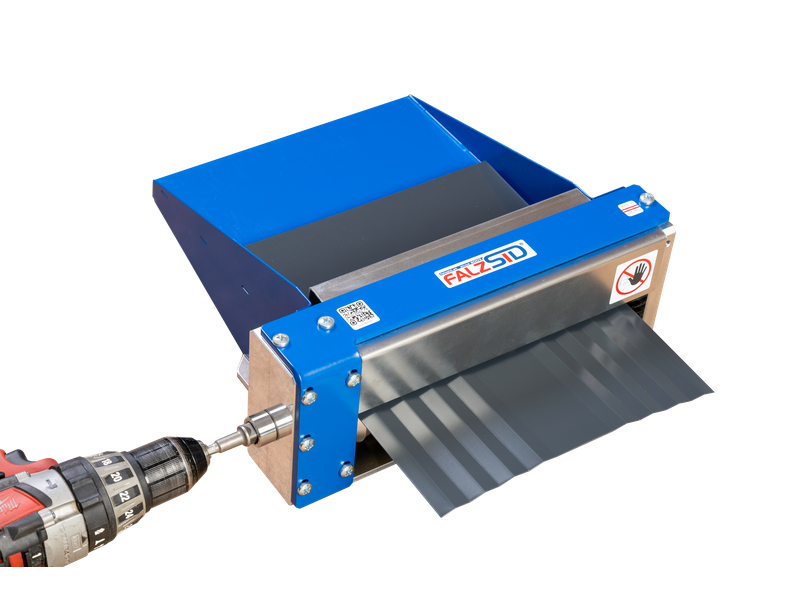

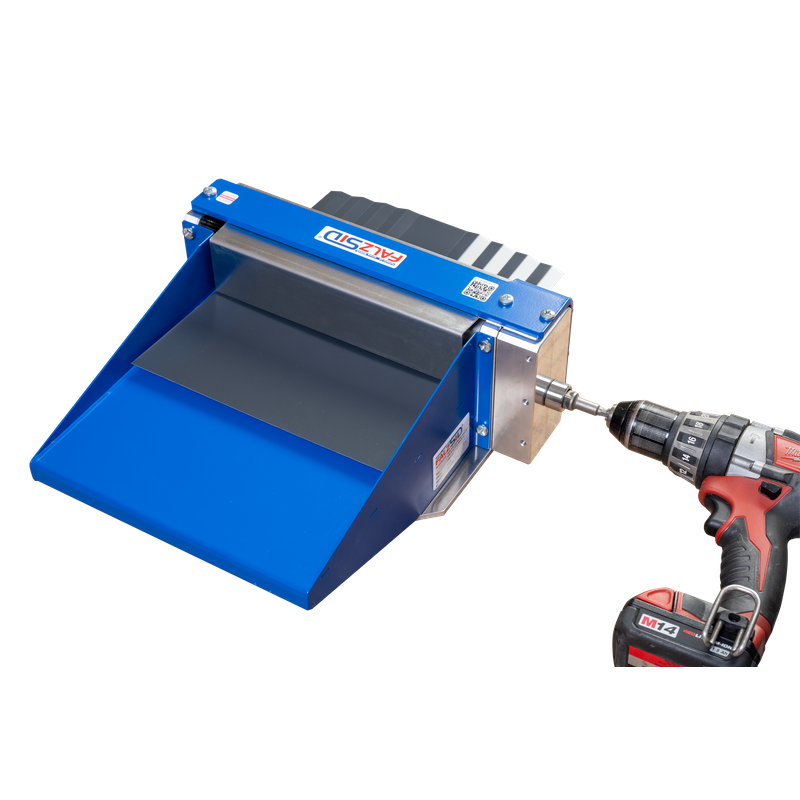

The Falzsid RVM Strip Joint Machine is designed for creating strip joints in coated and uncoated sheets. Use the cordless drill: slowest speed setting in forward mode and highest torque. We recommend an 18-volt cordless drill.  The machine creates water-resistant connections, making it suitable for roofing tasks like wall cladding, ridge covers, and window sills. Its wider centre bar improves water drainage and provides a clean finish.

Uses:

• Works with coated and uncoated sheets, including aluminium, zinc, copper, steel, and stainless steel.
• Creates rainproof connections from an inclination of 3° without needing additional sealing (additional sealing tapes can be used for special requirements).
• Butt Joint designs with lap strip joint connectors are convenient for all covers. Including wall claddings, window sills, cornice copings and ridge covers.
• Optimal geometry: the wider centre bar on the lap strip joint connector ensures better water drainage and an even better look!

Product Details:

• Hand crank for smooth operation
• Compact and portable design
• Perfect optics!
• Expansion compensation
• Insertion width (roll width): 250 mm
• The cordless drill is not included!

Sheet thicknesses:

• Aluminium, Zinc, Copper: Up to 1.0 mm
• Steel: Up to 0.75 mm
• Stainless Steel: Up to 0.6 mm
