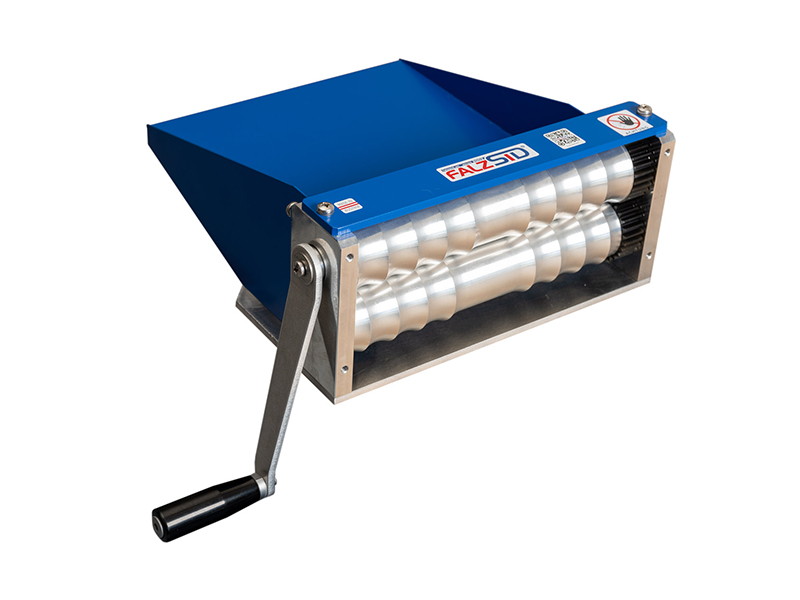

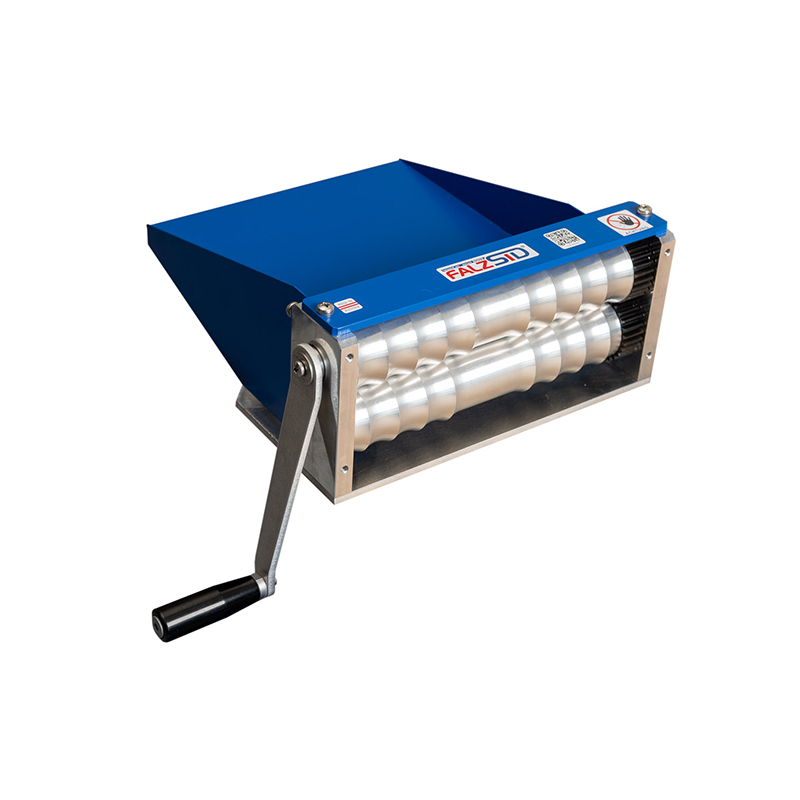

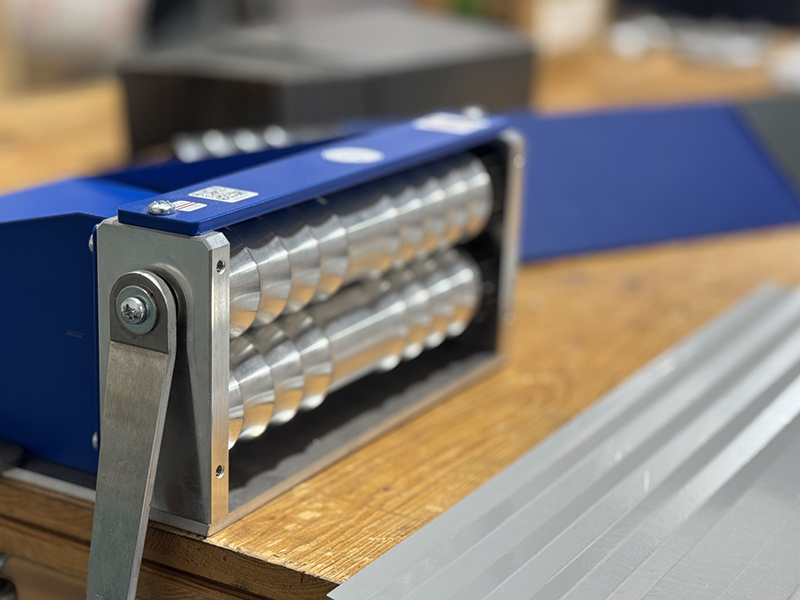

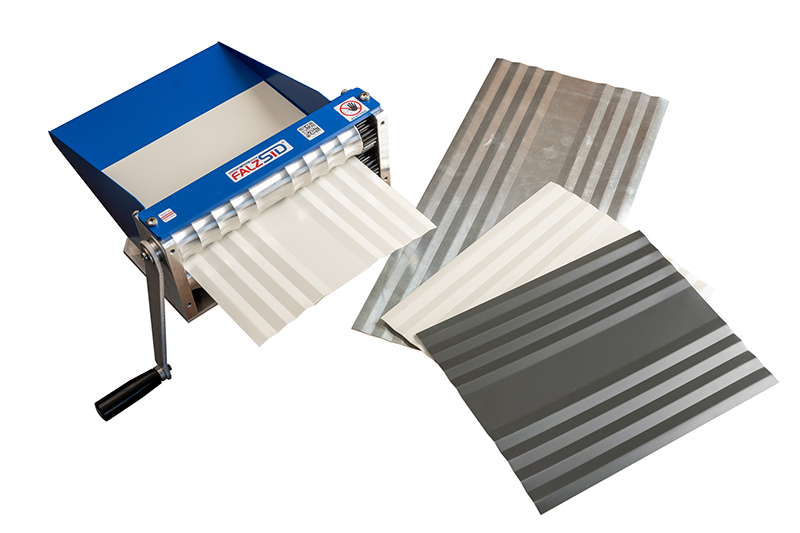

FALZSID RVM - STRIP JOINT MACHINE

Strip Joint Machine

• Smooth-running hand crank.
• Compact design and low weight.
• Suitable for all coated and uncoated sheets.
• Optimal geometry: the wider center bar on the lap strip joint connector ensures better water drainage and an even better look!

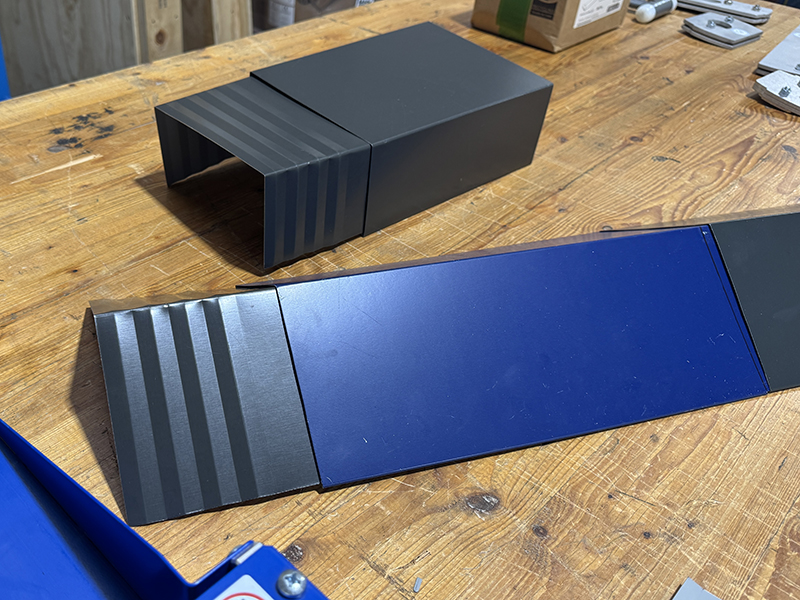

Butt Joint designs with lap strip joint connectors are convenient for all covers such as wall claddings, window sills, cornice copings, ridge covers, etc.:

• Rainproof connection from an inclination of 3° on all covers
• No further sealing measures (additional sealing tapes can be used for special requirements
• Expansion compensation
• Quick and easily assembly
• Perfect optics

Sheet thicknesses:

• Aluminum, zinc, copper: up to 1.0mm
• Steel: up to 0.75mm
• Stainless Steel: up to 0.6mm

Dimensions:

• L - 315mm, W - 325mm, H - 145mm
• Insertion width (rollwidth): 250mm
• Weight: 7 kg
