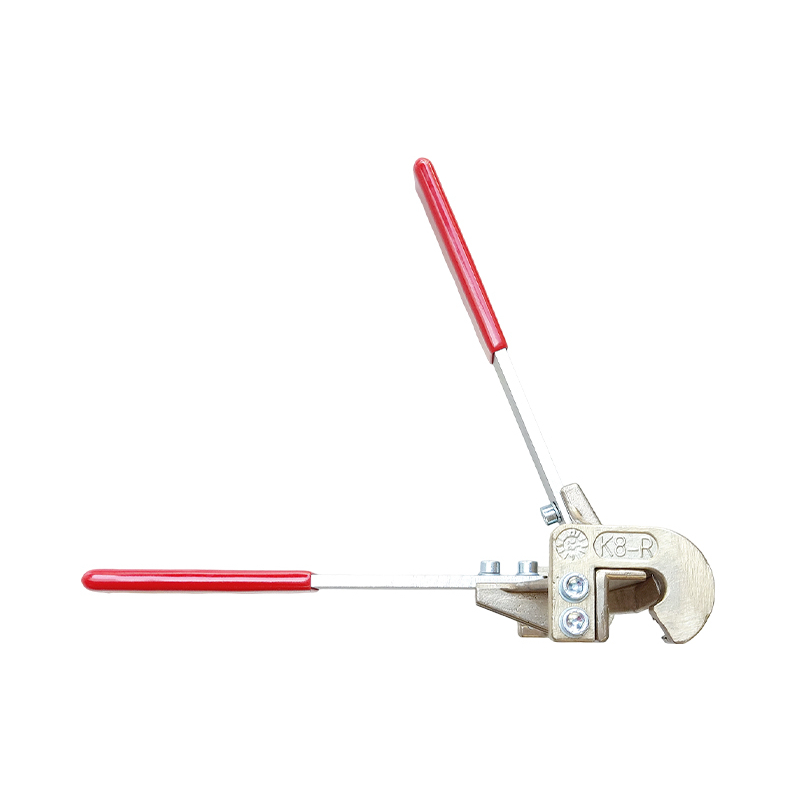

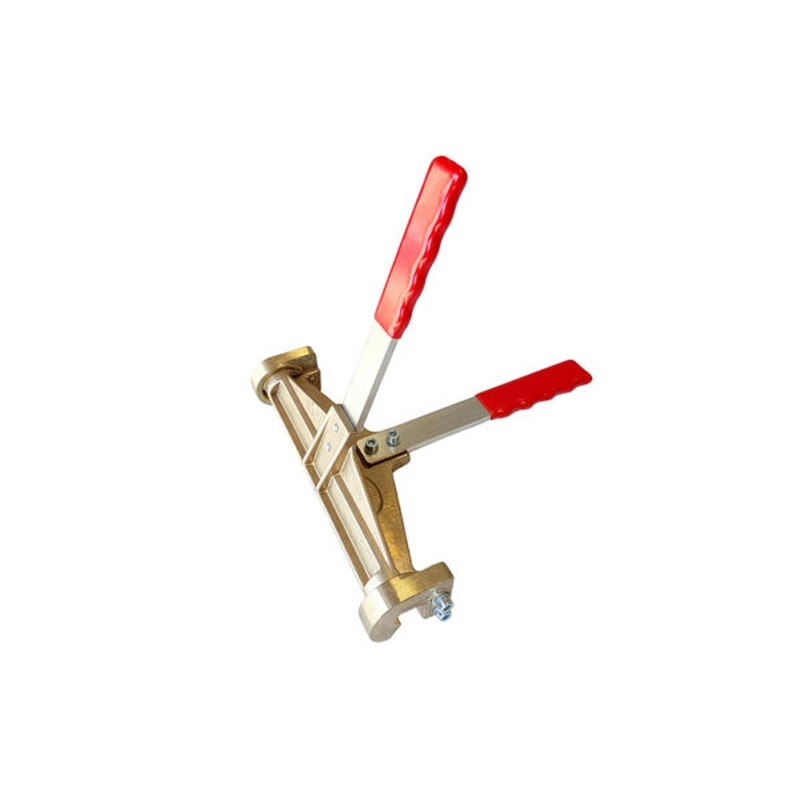

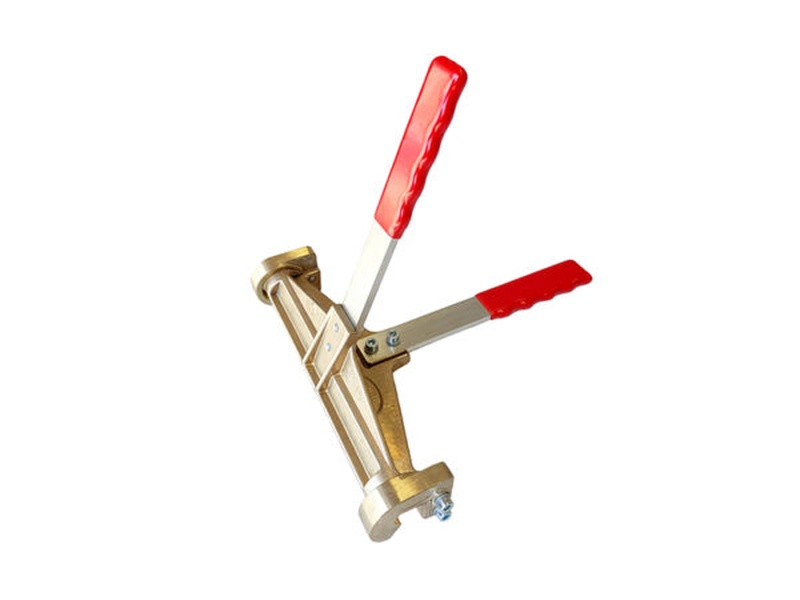

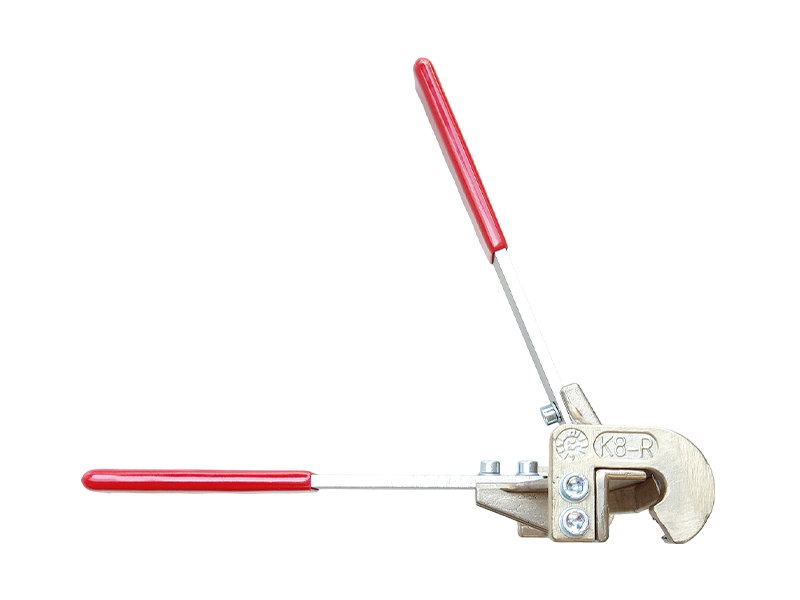

DRACO K8 SINGLE LOCK SEAMER

K8 SINGLE LOCK SEAMER

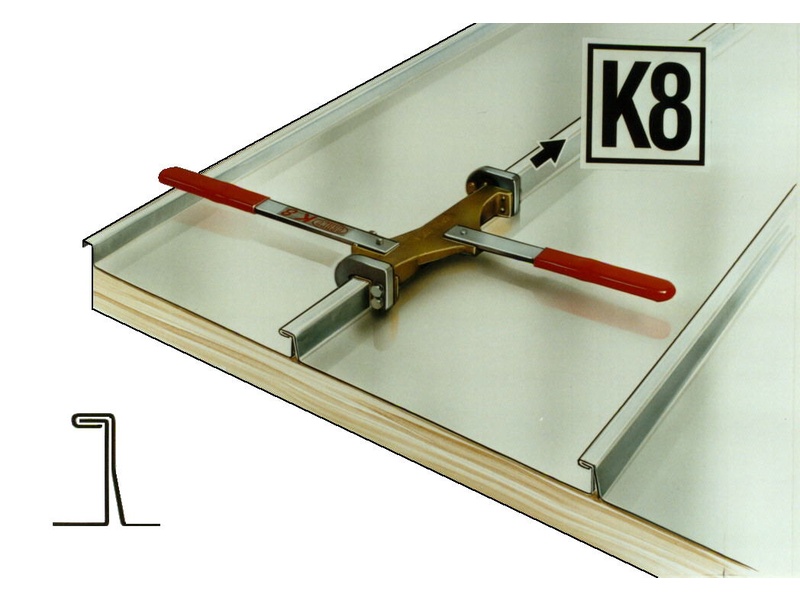

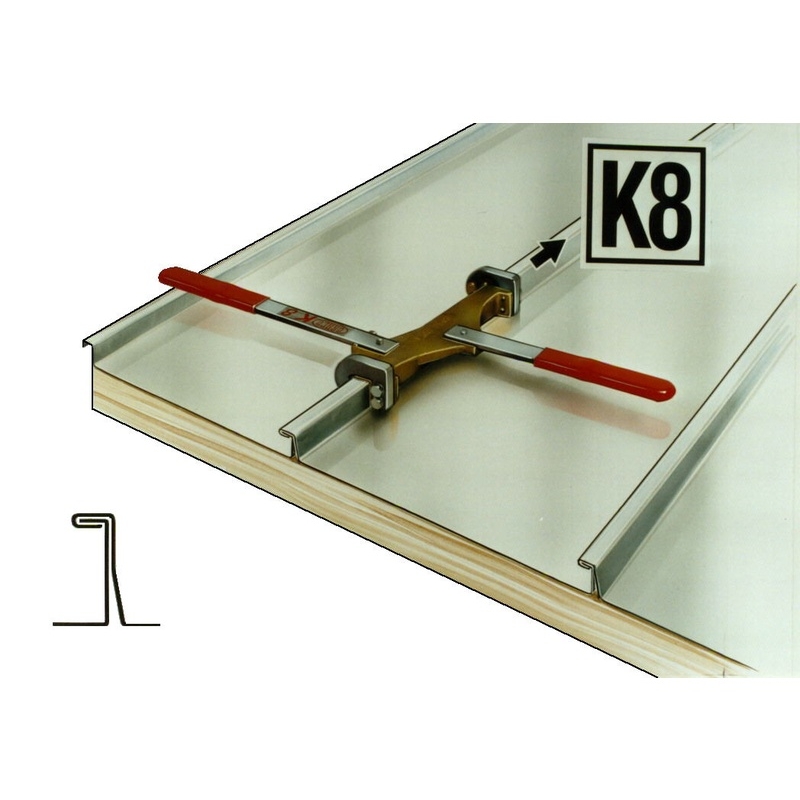

The Single Lock Hand Seamer K8 is ideal for closing single seams in a single pass in profiled material. Moreover, it is ideal for start-up connections and areas with difficult access, so wherever one can not get in with the electric tilting machines and still want to work quickly. The K8 closes the profile to a strong and fixed single seam in sheet with or without coating.

Sheet iron, aluminum, copper and zinc can be threaded to a thickness of 0.8 mm. In stainless steel, the maximum thickness is 0.5 mm.

Application options:

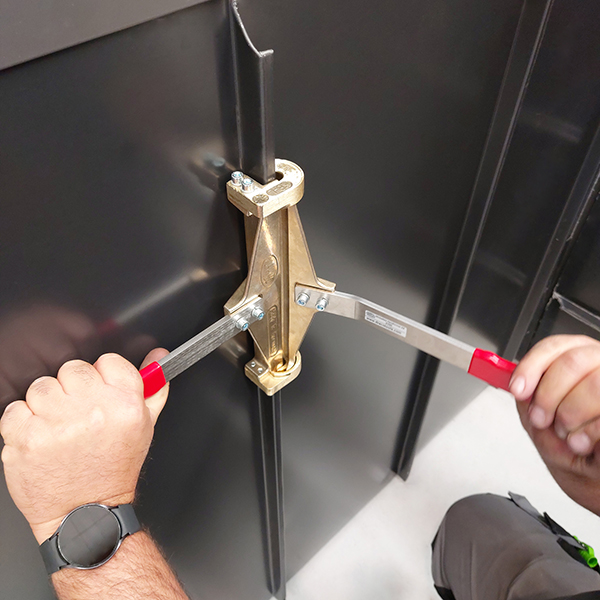

The K8 is suitable for short facades, chimney connections, front roofs, bay windows, etc., such as fixing initial connections, pre-closing on clips and closing hard-to-reach areas on facades.
When placing very long lanes, the K8 can also be used for fastening and thus for temporary protection against gusts of wind.
If an electric seamer (eg the DRÄCO roofing machine K9-1) can not be used directly at the beginning of a seam due to obstacles, or if the seamer at the end of the seam can not run out of the material, the K8 closes before or after.

• Closing Length: 210mm
• Length: 255mm
• Width: 250-570mm
• Weight: 2.4kg
• Aluminum, copper, zinc, steel: 0.8mm
• Stainless Steel: 0.5mm
